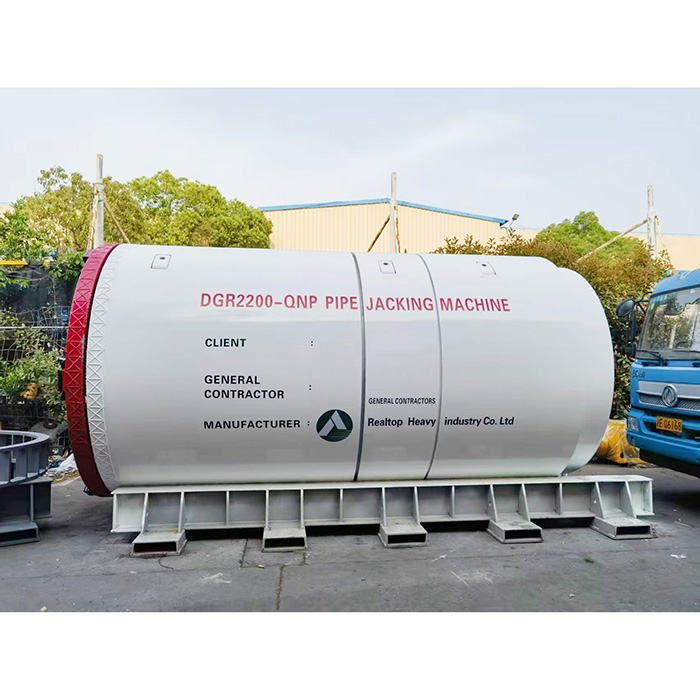

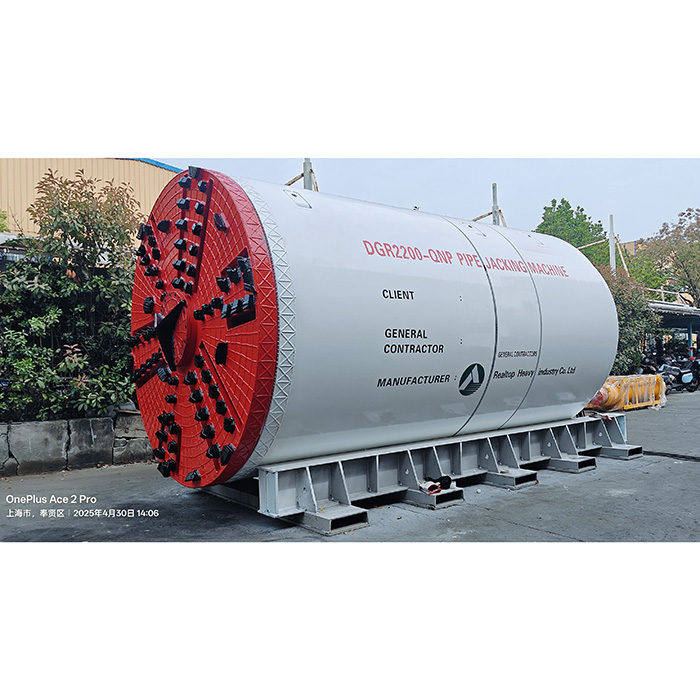

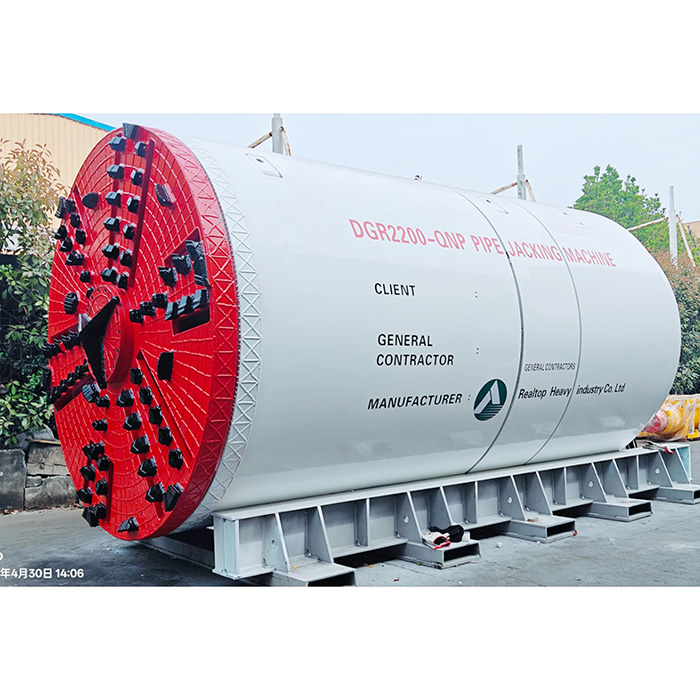

2200MM pipe jacking machine

產品介紹

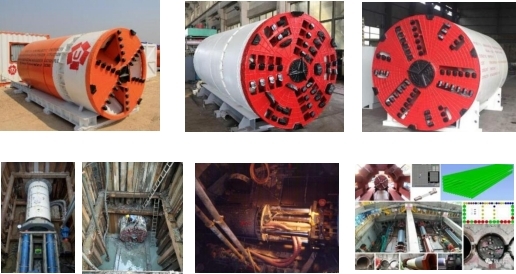

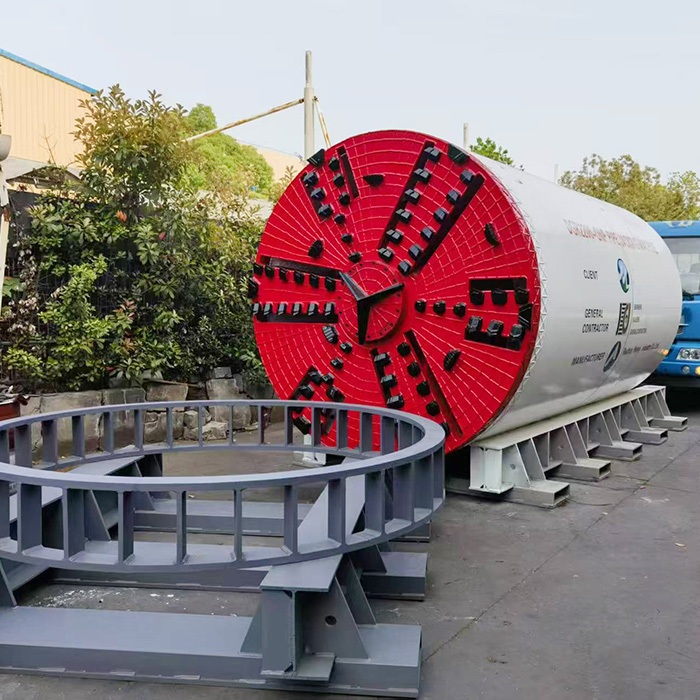

普通土質的中小型頂管機圖片如下，直徑2200MM，REALTOP制造：

中小型泥水平衡頂管掘進機 （Ф700 - Ф2200）

Small and Medium Sized Slurry Pipe Jacking Machine

中小型泥水平衡頂管機應用于市政中小型管道（污水管、供水管、供電電纜管、通信電纜管、天然氣管等）的建設，管材通常為砼管、鋼管、玻璃鋼夾砂管，可以適應在土、砂土、含有小粒徑的卵石和礫石等地質條件下施工，適用直線或曲線頂進距離100m-1000m。采用泥水平衡方式完成土體切割、推進、連續排渣等作業，完成中小型管道安全、高效、高質量非開挖鋪設，可以較好地控制地面沉降。

Small and medium-sized slurry balance pipe jacking machine is used in the construction of municipal small and medium-sized pipelines (sewage, water supply, power cable pipe, communication cable pipe, natural gas pipe, etc.). The pipes are usually concrete pipe, steel pipe, glass fiber reinforced plastic sand pipe, which can be adapted to the construction under different geological conditions such as soil, sand soil, pebbles and gravel with small particle size, and are suitable for straight or curve jacking distance of 100m-1000m. The slurry balance method is used to soil cutting, propulsion, continuous slag discharge and other operations, and the safe, efficient and high-quality trenchless laying of small and medium-sized pipelines can be completed, which can better control the ground settlement.

Pipe ID (mm)	Machine DimensionOD*L(mm)	Cutterhead Power (kW*set)	Torque (kN·m)	Revolution (r/min)	Steering Jack (kNstset)	Hydraulic Unit (kW)	Slurry Line Diam.(mm)	Shaft Dimension (mm)	Power Source (Hz/V)
Φ700	925 x 3500	18.5 x 1	28	0—7	294 x 30 x 4	1.1	100	4000x3000	50/400
Φ750	975 x 3500	18.5 x 1	28	0—7	294 x 30 x 4	1.1	100	4000x3000	50/400
Φ800	1020 x 3500	30 x 1	46	0—7	294 x 30 x 4	1.1	100	4000x3000	50/400
Φ900	1100 x 3500	30 x 1	46	0—7	294 x 35 x 4	1.1	100	4000x3000	50/400
Φ1000	1220 x 3800	37 x 1	70	0—6	490 x 35 x 4	1.5	100	6000x4000	50/400
Φ1100	1330 x 3800	37 x 1	70	0—6	490 x 40 x 4	1.5	100	6000x4000	50/400
Φ1200	1470 x 3800	45 x 1	107	0—5	784 x 45 x 4	2.2	100	6000x4000	50/400
Φ1350	1640 x 3800	55 x 1	130	0—5	784 x 45 x 4	2.2	100	6000x4000	50/400
Φ1500	1810 x 3900	45 x 2	215	0—4	784 x 50 x 4	3	150	6000x4000	50/400
Φ1650	1950 x 3900	45 x 3	344	0—3	980 x 60 x 4	3	150	6500x4000	50/400
Φ1800	2190 x 4000	45 x 3	344	0—3	784 x 80 x 8	5.5	150	6500x4000	50/400
Φ2000	2440 x 4000	55 x 3	525	0—3	784 x 80 x 8	5.5	150	7000x4000	50/400
Φ2100	2540 x 4000	55 x 3	525	0—3	784 x 80 x 8	5.5	150	7000x4000	50/400
Φ2200	2610 x 4000	55 x 3	525	0—3	784 x 80 x 8	5.5	150	7000x4000	50/400

注：以上參數可根據用戶需求適當調整。

Note: Above parameters can be adjusted based on clients needs.

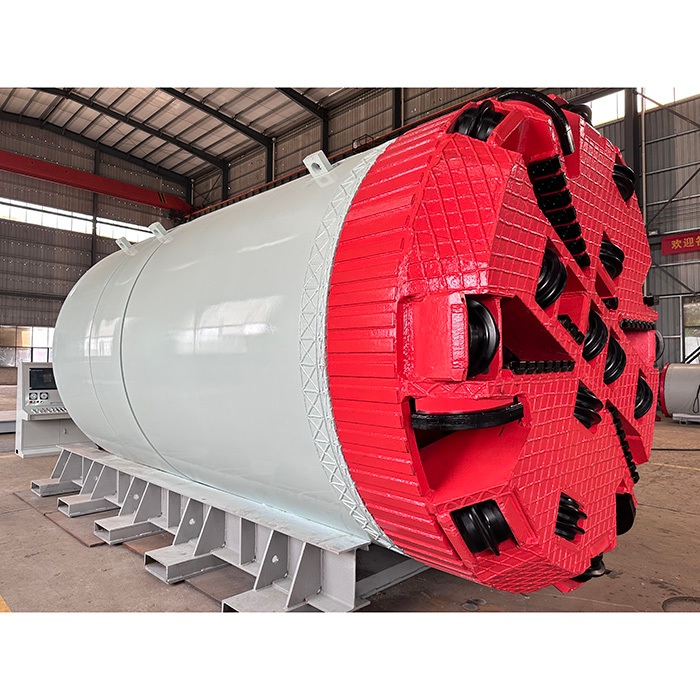

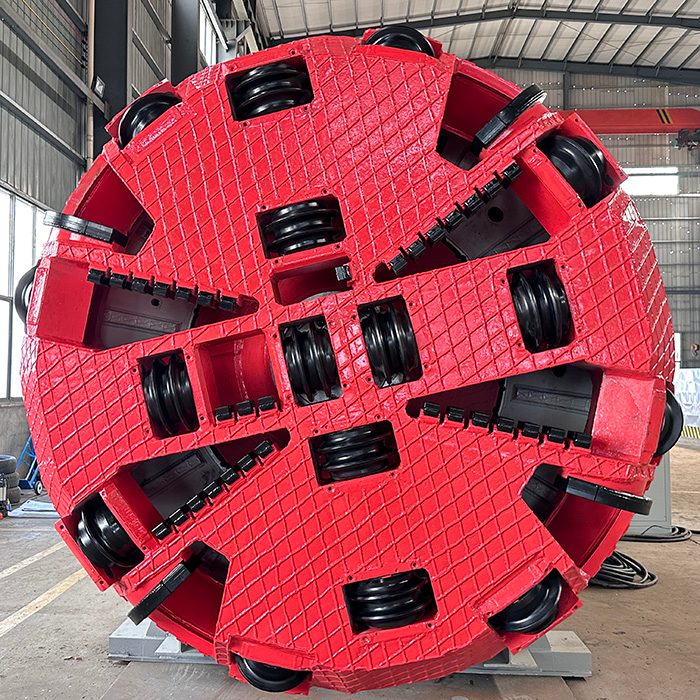

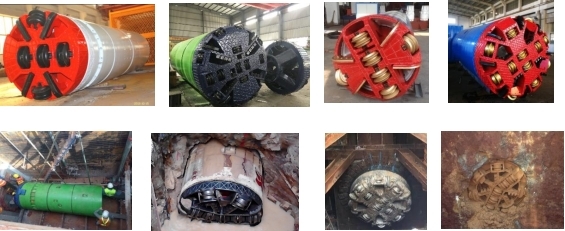

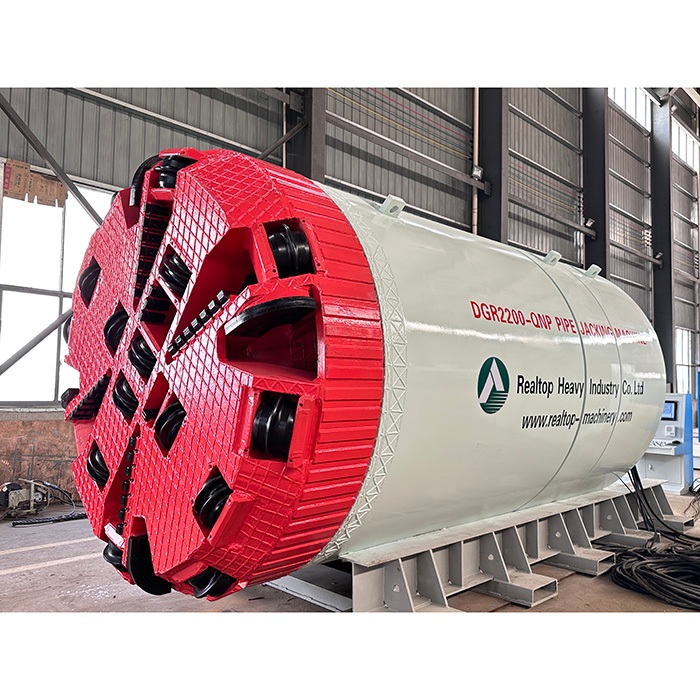

巖石頂管機REALTOP制造，直徑2200MM

泥水平衡巖石頂管掘進機 (Φ600 - Φ3500)

Slurry Pipe Jacking Machine Series For Rock Condition

泥水平衡巖石頂管機應用于市政管道（污水管、供水管、供電電纜管、通信電纜管、天然氣管等）的建設，管材通常為砼管、鋼管，可以適應在含有卵石、礫石、巖石等復雜地質條件下施工，適用直線或曲線頂進距離100m-1000m。采用泥水平衡方式完成巖石破碎、推進、連續排渣等作業，完成管道安全、高效、高質量非開挖鋪設，可以較好地控制地面沉降。

Slurry pipe jacking machinefor rock conditionis applied to the construction of municipal pipelines (sewage, water supply, power cable pipes, communication cable pipes, natural gas pipes, etc.). Usuallyforconcrete pipes or steel pipes, suitable for complex geological conditions such as pebbles, gravel, and rocks, straight-line or curved jacking distances of 100m-1000m. The use of slurry balance method to completerock fragmentation,propulsion, continuousslag discharge and other operations, can achieve safe, efficient, and high-qualitytrenchless laying of pipelines, and effectively control ground settlement.

Pipe ID (mm)	Machine DimensionOD*L(mm)	Cutterhead Power (kW*set)	Torque (kN·m)	Revolution (r/min)	Steering Jack (kNstset)	Hydraulic Unit (kW)	Slurry Line Diam. (mm)	Shaft Dimension (mm)	Power Source (Hz/V)
Φ600	780 x 3500	18.5 x 1	35	0-7	294 x 30 x 4	1.1	80	5000x3000	50/400
Φ800	1020 x 4000	37 x 1	69	0-7	343 x 35 x 4	1.1	100	5000x3000	50/400
Φ900	1100 x 4000	37 x 1	69	0-7	490 x 40 x 4	1.5	100	5000x3000	50/400
Φ1000	1220 x 4000	45 x 1	107	0-6	490 x 40 x 4	1.5	100	5000x4000	50/400
Φ1200	1500 x 4500	30 x 3	215	0-5	784 x 45 x 4	2.2	100	5000x4000	50/400
Φ1350	1640 x 4500	45 x 3	322	0-5	980 x 50 x 4	2.2	100	7000x4000	50/400
Φ1500	1810 x 4600	55 x 3	394	0-5	980 x 55 x 4	3	150	7000x4000	50/400
Φ1650	1950 x 4600	55 x 3	394	0-5	980 x 60 x 4	3	150	7000x4000	50/400
Φ1800	2190 x 5200	55 x 4	600	0-5	784 x 70 x 8	5.5	150	7500x4000	50/400
Φ2000	2440 x 5500	55 x 4	600	0-5	784 x 80 x 8	5.5	150	7500x4000	50/400
Φ2100	2540 x 6000	55 x 4	600	0-5	980 x 80 x 8	5.5	150	8000x4000	50/400
Φ2200	2610 x 6000	55 x 5	750	0-5	980 x 90 x 8	5.5	150	8000x4000	50/400
Φ2400	2910 x 6500	55 x 5	750	0-5	1176 x 100 x 8	5.5	150	8500x5000	50/400
Φ2500	2980 x 6500	55 x 5	750	0-5	1176 x 100 x 8	5.5	150	8500x5000	50/400
Φ2600	3070 x 6500	55 x 6	900	0-5	1176 x 100 x 8	5.5	150	8500x5500	50/400
Φ2800	3340 x 6500	55 x 6	900	0-5	1470 x 110 x 8	7.5	150	8500x5500	50/400
Φ3000	3530 x 7000	75 x 6	1432	0-4	1470 x 120 x 8	7.5	150	9000x6000	50/400
Φ3500	4170 x 7000	75 x 6	1432	0-4	1470 x 120 x 8	7.5	150	9000x6000	50/400
